ZP07 Series

ZP07 Series

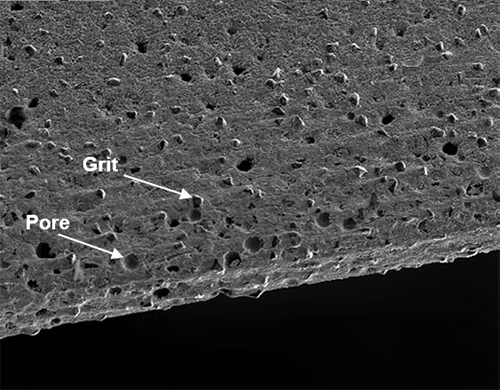

The ZP07 series combines high cutting ability that is specific to electroformed bond blades and appropriate self sharpening ability by forming pores in the electroformed bond. It is now possible to process silicon + glass, silicon carbide (SiC) and other materials that have been difficult to cut with conventional electroformed bonds.

Features

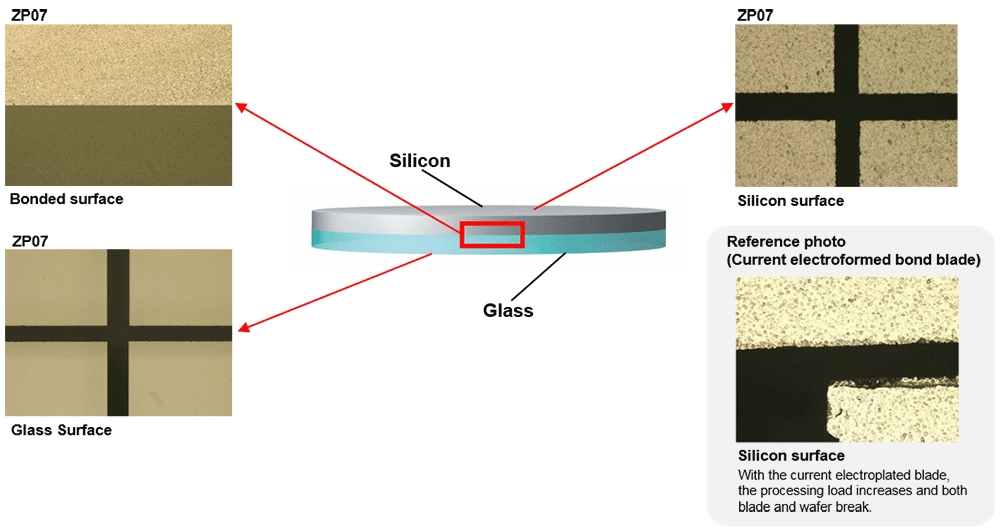

  • Reallizes one-pass processing of glass + Silicon wafer
  • Realizes high-quality processing of silicon carbide (SiC) and other difficult-to-cut materials.
  • Two types available: standard and low concentration.
Catalog Download

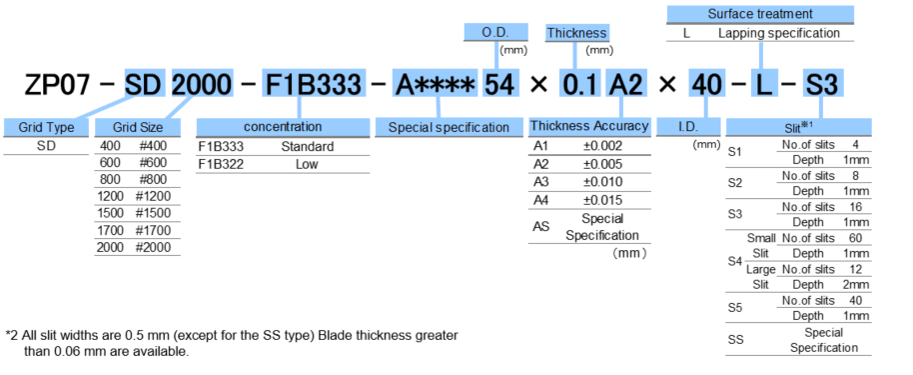

For the detailed specification and functions, view our catalogues.
ZP07 Series Catalog
Inquiry
If you have any questions or need to discuss something, please feel free to contact us.
Contact form Check your nearest DISCO sales office
