ZHCR Series

ZHCR Series

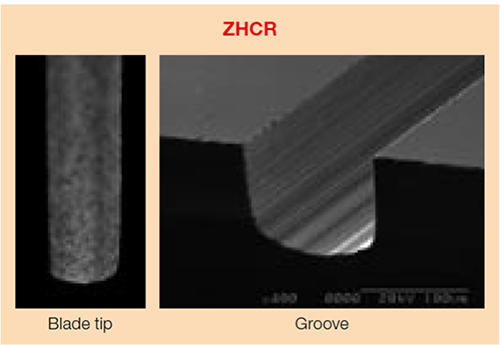

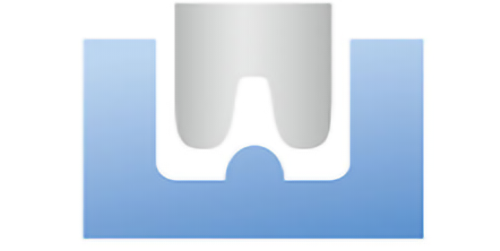

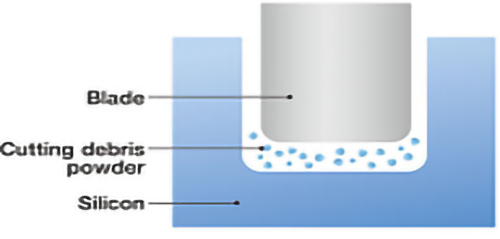

For relatively thick blades in excess of 60 µm, only the blade tip midsection may wear as the number of cut lines increase. This blade tip shape collapse causes quality deterioration such as widening of the kerf and sporadic chipping. The ZHCR series restrains the collapse of the blade tip shape and realizes stable processing without deterioration using a special blade structure based on unique technology. The ZHCR series proves its worth in the following processes where blade tip shape collapse easily occurs.

Features
  • Processes that use blades with thicknesses exceeding 60 µm
  • Processing of wafers with a lot of TEG on the street
  • Blade dicing after laser grooving
Catalog Download

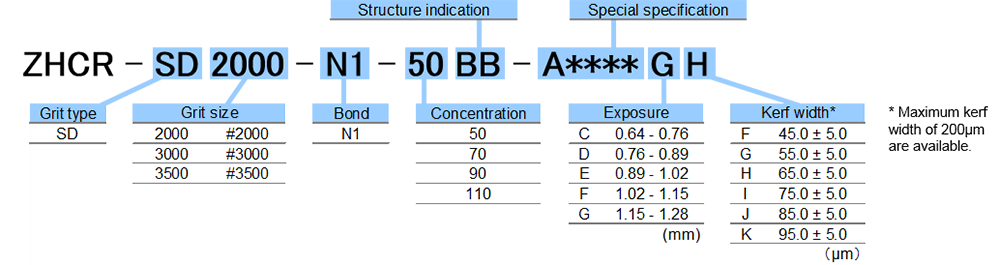

For the detailed specification and functions, view our catalogues.
ZHCR Series Catalog
Inquiry
If you have any questions or need to discuss something, please feel free to contact us.
Contact form Check your nearest DISCO sales office
